Technical Specifications

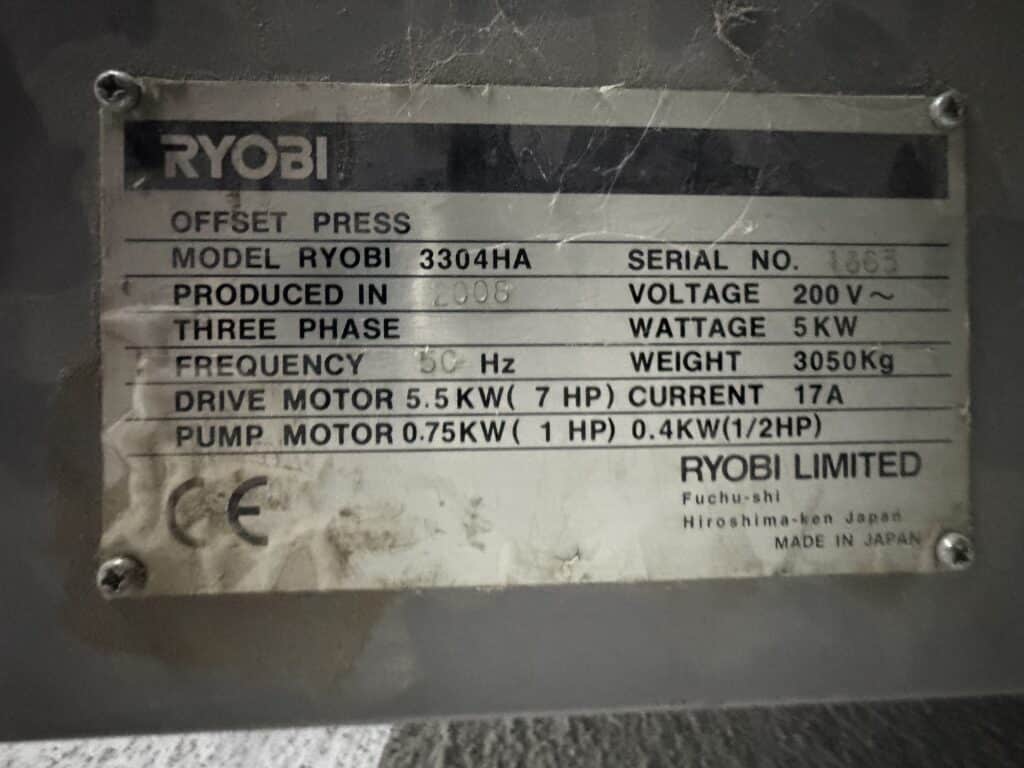

Ryobi 3304HA, Serial No. 1865,
Produced 2008
Configuration:
4 colours (four printing units)
Sheet size (max): 340 × 470 mm
Min sheet size: 90 × 148 mm
Max print area: 335 × 465 mm
Paper stock range: ~0.04–0.4 mm
Max speed: 10,000 sheets/hour
Continuous (conventional) dampening — Ryobi's standard integrated dampening; can run alcohol/IPA

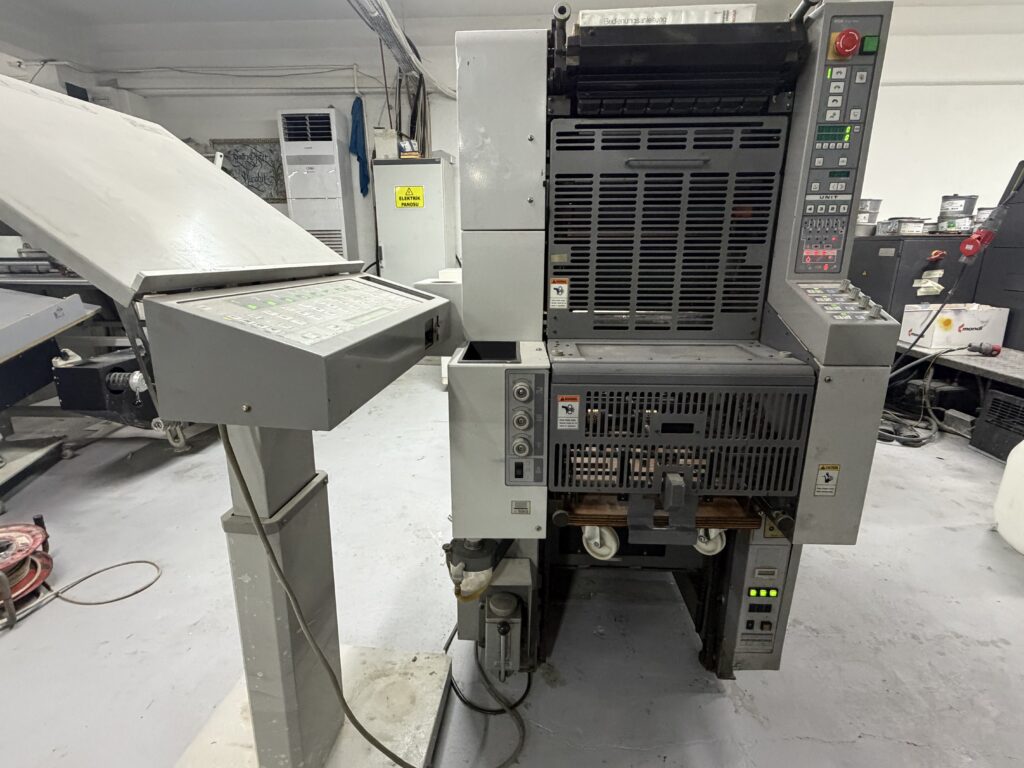

Ryobi PCS-F ink control console (remote ink key preset, visible in photos)
Semi-automatic plate change

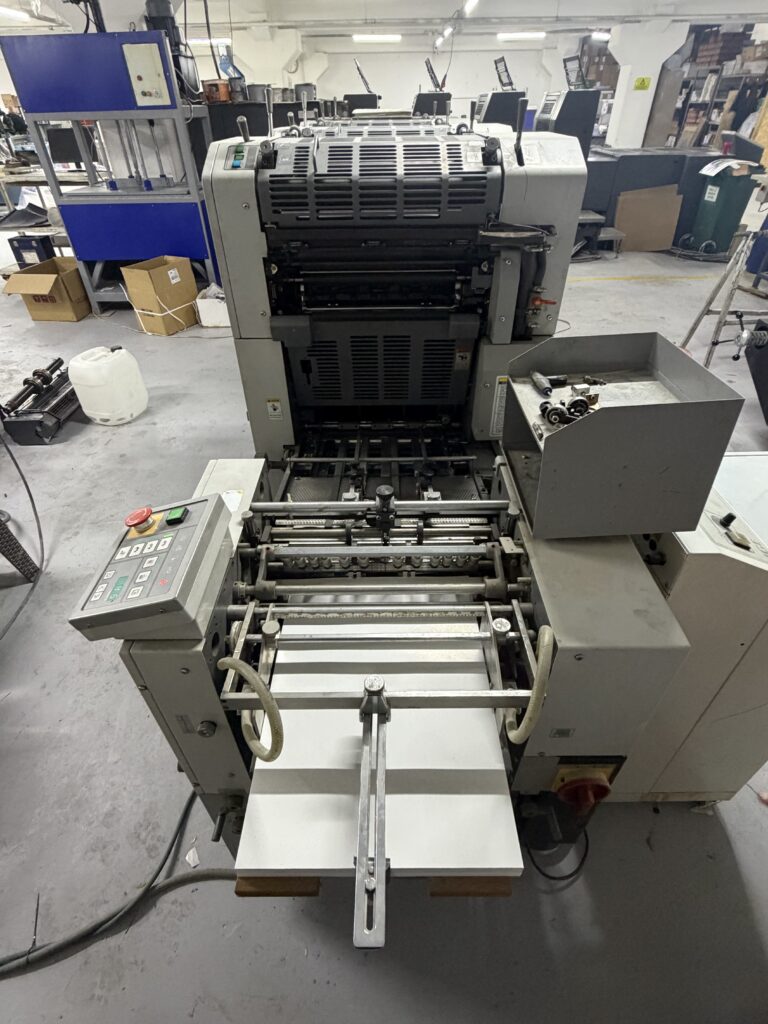

Pneumatic suction feeder + stream feeder
Chain delivery with powder spray unit (anti-set-off)
Central lubrication
Drive motor 5.5 kW (7 HP), pump motor 0.75 kW
